Tool Design Service

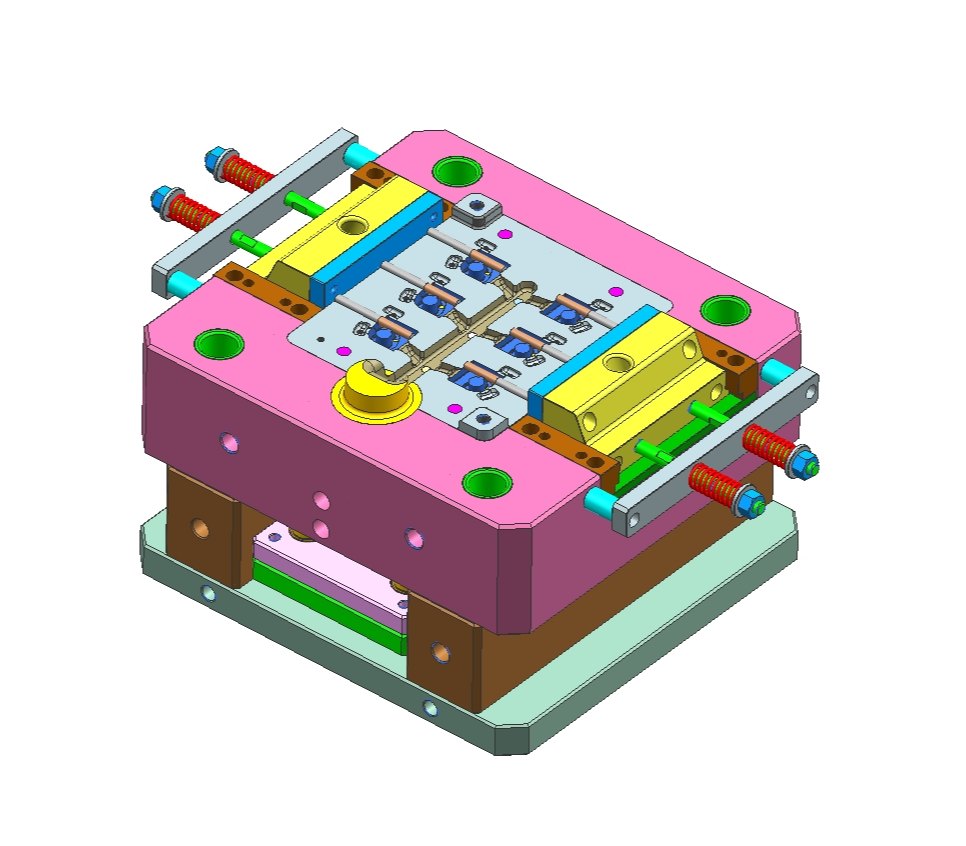

PDC Tool Design
At Ingenious Design Solution, we provide expert Pressure Die Casting (PDC) Tool Design services, delivering high-precision and production-ready solutions backed by over 10+ years of industry experience.
We specialize in designing robust and efficient PDC dies that ensure excellent surface finish, dimensional accuracy, and high productivity for mass production. Our deep understanding of die casting processes, molten metal flow, thermal behavior, and tool life optimization allows us to create tools that perform reliably under high pressure and temperature conditions.
With a decade of hands-on experience, we have successfully delivered PDC tool designs for automotive, electrical, electronics, and industrial components, ensuring smooth production, reduced rejection rates, and longer die life.
Our PDC Tool Design Expertise Includes
Pressure Die Casting Die Design
Fixed & Moving Die Assembly Design
Runner, Gate & Overflow Design
Cooling System & Venting Design
Ejector System & Slider Mechanism Design
Complete Manufacturing & Assembly Drawings
Why Choose Ingenious Design Solution
10+ Years of Specialized PDC Tool Design Experience
Focus on Quality, Precision & Tool Life
Designs Optimized for High-Volume Production
Compliance with International Design Standards
Reliable Support & Engineering Revisions
At Ingenious Design Solution, we engineer Pressure Die Casting tools that deliver consistency, durability, and maximum production efficiency—helping your manufacturing process run smoother and smarter.

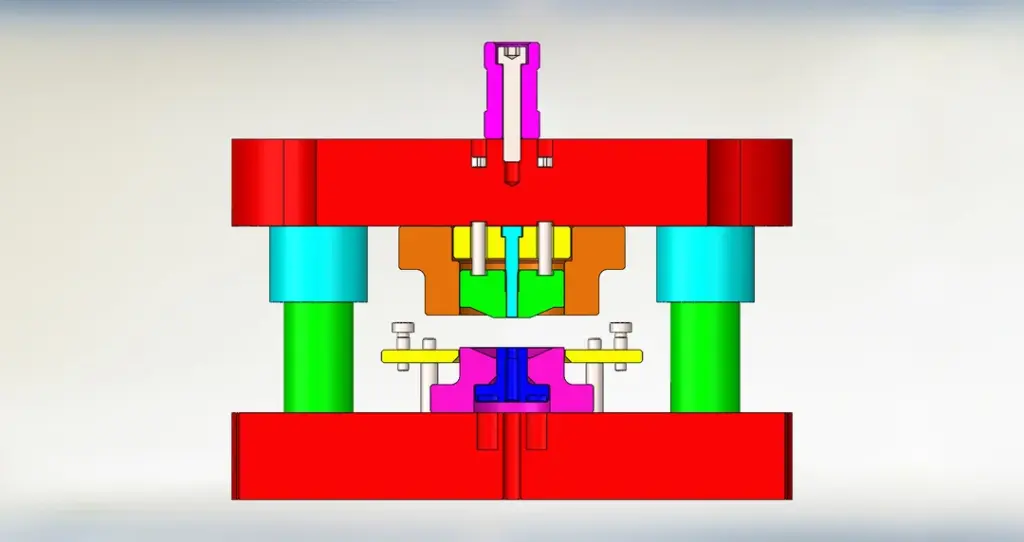

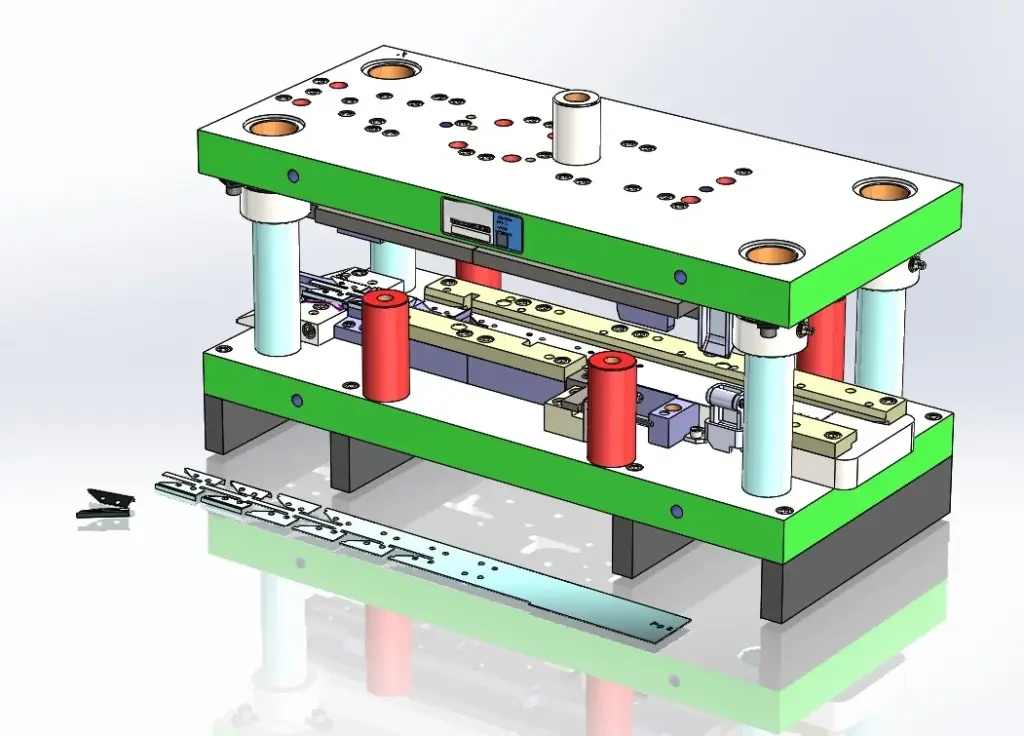

Progressive Tool Design
At Ingenious Design Solution, we offer professional Progressive Die Tool Design services, delivering precision-engineered and production-ready solutions backed by over 10+ years of industry experience.
We specialize in designing high-performance progressive dies that enable multiple operations—such as piercing, blanking, bending, and forming—within a single press stroke. Our designs are focused on accuracy, process stability, reduced cycle time, and long tool life, ensuring smooth and efficient mass production.
With more than a decade of hands-on experience, we have successfully developed progressive die tools for automotive, electrical, electronics, and sheet-metal manufacturing industries. Our strong understanding of strip layout planning, material behavior, press capacity, and manufacturability allows us to deliver tools that minimize scrap and maximize productivity.
Our Progressive Die Design Expertise Includes
Progressive Die Tool Design
Strip Layout & Process Planning
Blanking, Piercing, Bending & Forming Stages
Die Set, Punch & Plate Design
Guide, Ejector & Stock Feeding Mechanism Design
Complete Manufacturing & Assembly Drawings
Why Choose Ingenious Design Solution
10+ Years of Progressive Die Design Experience
Optimized Designs for High-Volume Production
Strong Focus on Accuracy & Tool Life
Industry-Standard CAD & Design Practices
Reliable Engineering Support & Revisions
At Ingenious Design Solution, we design Progressive Die tools that deliver precision, consistency, and production efficiency, helping manufacturers achieve reliable output with reduced downtime.
